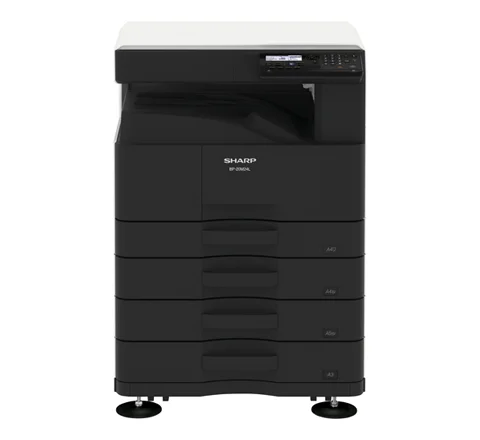

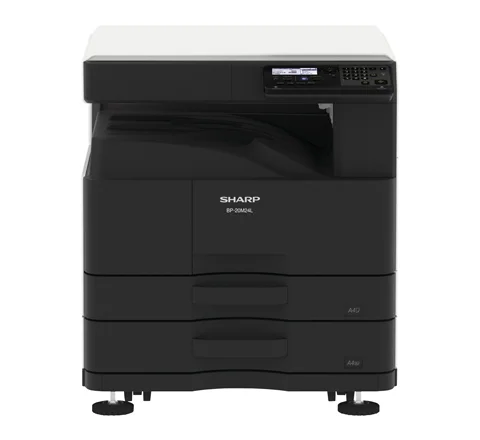

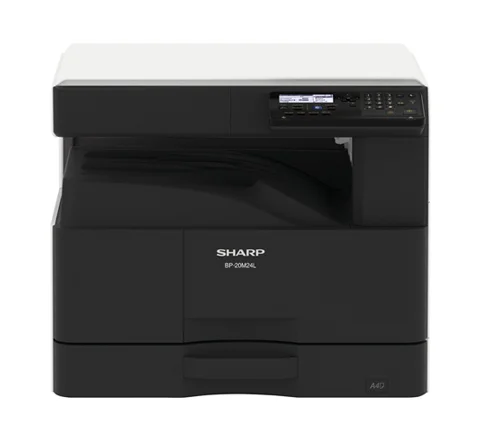

A3 Black & White Photocopier
BP-20M24L
A Handy MFP for the Modern Workspace
The new BP-20M24L is a fast, network-ready, A3 black & white MFP with a flexible design.
It brings advanced functionality, impressive quality and a host of productivity features within reach of every small workgroup, making it ideal for all your daily black & white printing, copying and colour scanning needs.

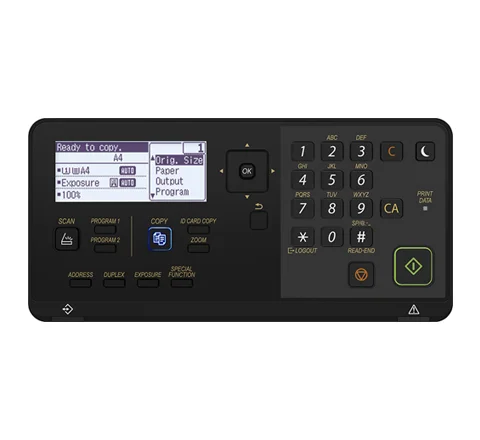

You can print at up to 24 pages per minute and increase the paper supply from 350 to 1850 which is more than enough to support the needs of any busy office. The 4”, 5-line LCD control panel is easy to use and the status indicator lamps let you check the machine and job status from a distance.
Copying is just as quick. A first copy out time of 6.4 seconds eliminates unnecessary delays from multiple short run jobs and the optimised Scan Once/Print Many technology simplifies longer runs. To save time and effort the BP-20M24L also lets you copy the front and back of ID cards onto one page at the touch of a button and it can automatically rotate and sort multi-page copy documents into sets.
A USB port at the front of the device allows documents to be printed from or scanned to a USB drive with ease. And with the optional wireless LAN adaptor, you can connect the MFP to any WiFi enabled device so that anyone can print or scan directly from their smartphone, tablet or PC using AirPrint, Google Cloud Print or the Sharpdesk Mobile app.
Perfect for the small workgroup, the energy efficient and network-ready BP-20M24L offers all the business essential features you need.
Key Features
- All-in-one copier, network printer, and network colour scanner
- Built-in stackless duplex module efficiently makes two-sided printouts
- Maximum 1,850-sheet paper capacity
- Multi bypass tray accommodates heavy paper up to 200 g/m2
- Convenient copy functions: 2-in-1/4-in-1 copying, centering, and automatic paper/magnification selection
- Enables easy access from mobile devices and flexible MFP placement (option)
- Enables scanned documents to be saved to a mobile device, or files on that device to be printed
- Multiple scan destinations, such as email, desktop, FTP server, and USB drive
- Conveniently located at the front of the MFP
- Pops up on the LCD when you insert a USB drive, allowing easy printing from or scanning to the USB drive
- PCL 6 (standard-equipped) and PostScript 3 emulation (option)
- Rotates every other copy by 90 degrees for easy retrieval
- 5-line LCD
- Automatically pops up on LCD
- Easy copying of both sides of a card
- Automatically reduce/enlarge image to fit paper size
- One-touch recall
- Easy browsing of email addresses
- Red and green LED lamps
- Centralised control of networked MFPs
- Up to 30 users with access numbers
- Auto Power Shut-off
- Easy opening/closing of paper drawers
A3 Black & White Photocopier
BP-20M24L
A Handy MFP for the Modern Workspace
The new BP-20M24L is a fast, network-ready, A3 black & white MFP with a flexible design.
Contact UsSpecifications
| ប្រភេទ | Desktop |
|---|---|
| ល្បឿនម៉ាស៊ីន | |
| A4 (8 1/2" x 11")*1 Max. 24 ppm | A3 (11" x 17") Max. 12 (11) ppm |
| បង្ហាញផ្ទាំងគ្រប់គ្រង | 5-line LCD |
| ទំហំក្រដាស | Max. A3 (11" x 17"), min. A6*2 (5 1/2" x 8 1/2") |
| សមត្ថភាពក្រដាស(80 g/m2) | |
| 350 សន្លឹក (ចាន 250 សន្លឹក និងចានបន្ថែម 100 សន្លឹក) | 1,850 សន្លឹក (350 សន្លឹក & ត្រៃ 3 x 500 សន្លឹកជាប់) |
| ទំងន់ក្រដាស | |
| 60 g/m2 ដល់ 105 g/m2 (16 lbs bond ដល់ 28 lbs bond) | 60 g/m2 ដល់ 200 g/m2 (16 lbs bond ដល់ 110 lbs index) |
| 55 g/m2 ដល់ 200 g/m2 (13 lbs bond ដល់ 110 lbs index) | |
| ពេលវេលាហូតទៅ*3 | 25 វិនាទី |
| អង្គចងចាំ | 1 GB (ចម្លង/បោះពុម្ព ចែករំលែក) |
| តម្រូវការហិរញ្ញវត្ថុ | វ៉ុលអេអ៊ីឌីភូមិ ±10%, 50/60 Hz |
| ការប្រើប្រាស់ថាមពល | Max. 1.2 kW |
| វិមាត្រ (W x D x H) | 599 x 608 x 511 mm(23 19/32" x 23 15/16" x 20 1/8") |
| ទំងន់ (ប្រហែល) | 29 kg (64.0 lbs) |
| Original paper size | Max. A3 (11" x 17") | |
|---|---|---|
| First copy time*4 | 6.4 sec. | |
| Continuous copy | Max. 999 copies | |
| Resolution | ||
| Scan | 400 x 600 dpi | |
| 600 x 600 dpi | ||
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25% to 400% in 1% increments | |
| Preset copy ratios | ||
| Metric | 10 ratios (5R/5E) | |
| Inch | 8 ratios (4R/4E) | |
| Scan method | Push scan (via control panel). Pull scan (TWAIN-compliant application) |
|---|---|
| Resolution | |
| 100, 150, 200, 300, 400, 600 dpi*5 | 100, 150, 200, 300, 400, 600 dpi*5 |
| 75, 100, 150, 200, 300, 400, 600 dpi. 50 dpi to 9,600 dpi via user setting*6 | 75, 100, 150, 200, 300, 400, 600 dpi. 50 dpi to 9,600 dpi via user setting*6 |
| File formats | TIFF, PDF, JPEG*7 |
| Scan destinations | Scan to email/desktop*8/FTP server/network folder (SMB)/USB drive |
| Resolution | 600 x 600 dpi |
|---|---|
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*9 |
| Supported OS | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 8.1, Windows 10, Windows 11, Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12, 13, 14 |
| Network protocols | TCP/IP |
| Printing protocols | LPR, Raw TCP (port 9100), FTP for downloading print files, IPP, SMB, WSD |
| PDL | |
| Standard | PCL 6 emulation |
| Option | PostScript 3 emulation |
| Available fonts | 80 fonts for PCL, 136 fonts for PostScript 3 emulation |
A3 Black & White Photocopier
BP-20M24L
A Handy MFP for the Modern Workspace
The new BP-20M24L is a fast, network-ready, A3 black & white MFP with a flexible design.
Contact Us
A3 Black & White Photocopier
BP-20M24L
A Handy MFP for the Modern Workspace
The new BP-20M24L is a fast, network-ready, A3 black & white MFP with a flexible design.
Contact UsDocuments
-
20M24L Digital Multifunctional System
